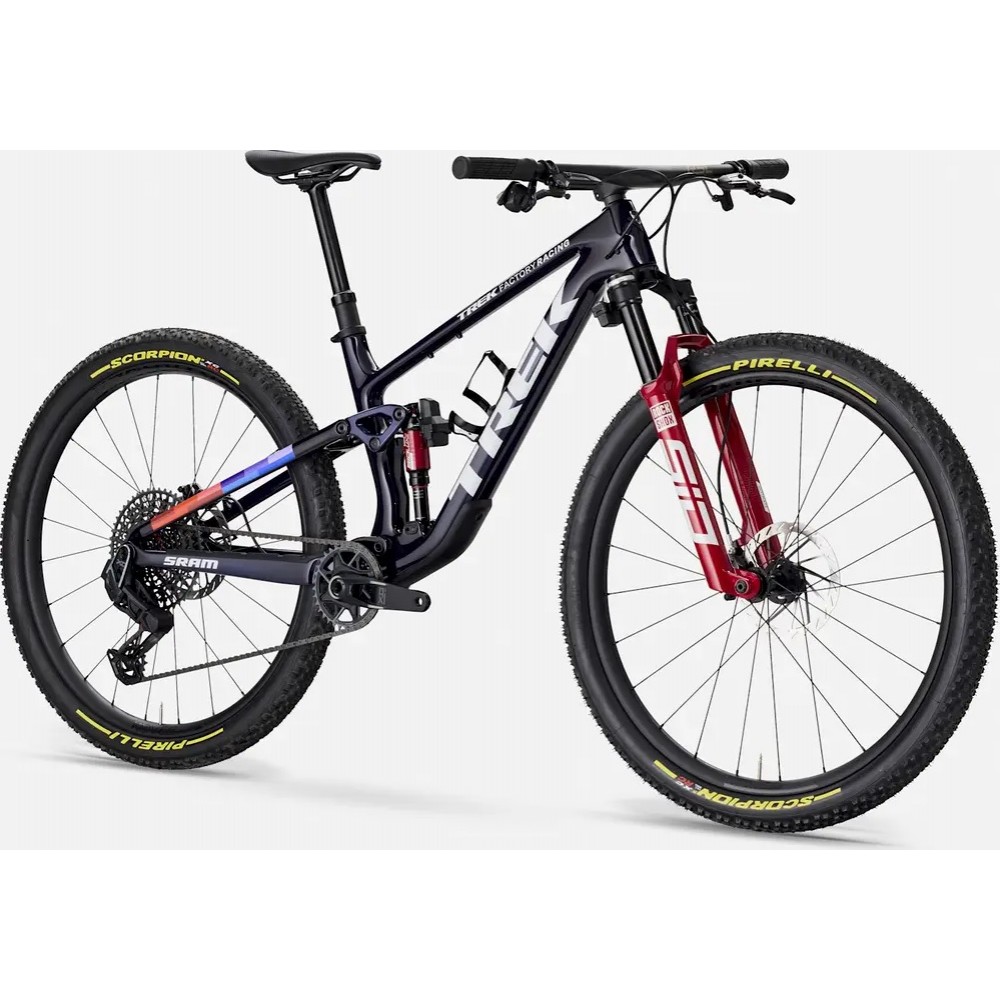

2026 Trek Top Fuel RSL Gen 4 Mountain Bike
- Brand:: Trek
- Product Code: 5342352
- Availability: In Stock
2026 Trek Top Fuel RSL Gen 4 Mountain Bike
Top Fuel RSL takes the ride-anything capability of our favorite short-travel trail bike and ups the race-ready factor. Its OCLV Mountain Carbon frame partners with a 120mm RockShox SID Ultimate fork and 120mm SIDLuxe Ultimate shock — both with Flight Attendant. It comes ready to rally with Bontrager Kovee Elite 30 carbon wheels, a SRAM X0 AXS 12-speed wireless transmission, a Bontrager Line dropper post, and a carbon Bontrager RSL integrated handlebar/stem.
SPECIFICATIONS:
| FRAME |
OCLV Mountain Carbon, internal storage, tapered head tube, internal guided routing, downtube guard, alloy rocker link, 4-way Mino Link, ABP, Boost148, 120mm travel BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH Tire Clearance: 2.5" Color: Navy Smoke |
|---|---|
| FORK |
RockShox SID Ultimate, Flight Attendant Race Day damper, Stealth DebonAir spring, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 120mm travel Travel: 120mm Spring Type: Air |
| SHOCK |
RockShox SIDLuxe Ultimate Flight Attendant, 185x50mm Travel: 120mm |
| BOTTOM BRACKET | SRAM DUB MTB Wide, 73mm, BSA threaded |
| HANDLEBAR |
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0mm rise, 750mm width, -13° stem rise Size M, ML: 80mm length Size L, XL: 90mm length |
| SADDLE | Verse Short Pro, carbon rails, 145mm width |
| SEATPOST |
Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length Type: Dropper |
| GRIPS | Trek Line Elite, lock-on |
| REAR DERAILLEUR | SRAM X0 Eagle AXS, T-Type |
| CRANK | SRAM X0 Eagle, power meter, DUB, 34T, T-Type, 55mm chainline, 170mm length |
| POWER METER | SRAM X0 Eagle, power meter, DUB, 34T, T-Type, 55mm chainline, 170mm length |
| SHIFTERS | SRAM AXS Pod |
| CASSETTE | SRAM Eagle XS-1295, T-Type, 10-52, 12-speed |
| CHAIN | SRAM X0 Eagle, T-Type, 12-speed |
| BRAKES |
SRAM Motive Silver 4-piston hydraulic disc Type: SRAM Hydraulic Disc |
| RIMS |
Front: Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'' Rear: Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, Boost148, 12mm thru axle, 29'' |
| TIRES | Pirelli Scorpion XC RC, Tubeless Ready, Team Edition Pro Wall, aramid bead, 120 tpi, 29x2.40'' |
| DISC ROTORS | SRAM HS2, 6-bolt, 180mm |
