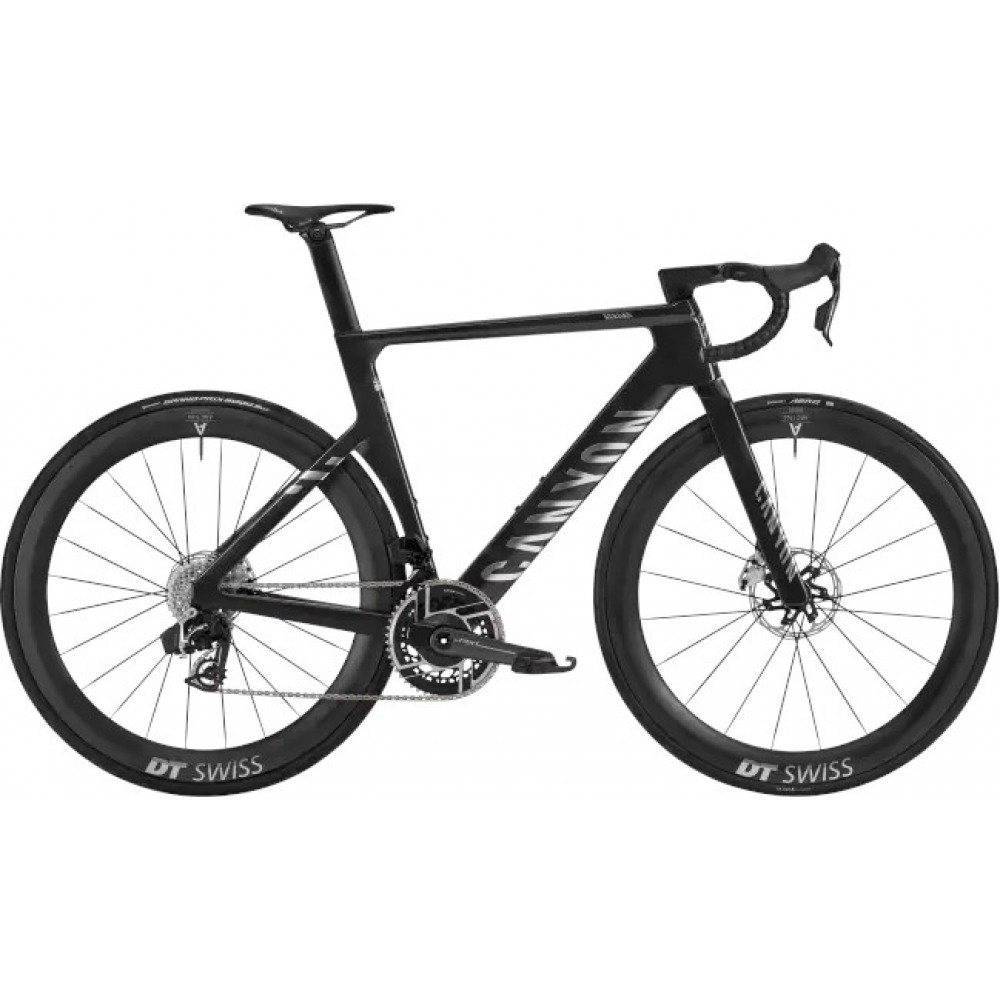

2026 Canyon Aeroad CFR AXS Road Bike
With wind tunnel numbers eclipsing anything else raced in the WorldTour, the Aeroad CFR is the fastest bike in the pro peloton today. To deliver the benchmark stiffness-to-weight and lightness that world-level racing demands, we build each and every Aeroad CFR frame using a newly developed, cutting-edge carbon layup – so you get the very same factory-spec equipment enjoyed by riders like Mathieu van der Poel.
SPECIFICATIONS
| FRAME |
Canyon Aeroad CFR, Fourth-generation Aeroad frame uniting peloton-leading aerodynamics with an improved carbon layup for added robustness. Axle dimension: 12x142 mm Front derailleur hanger: removable Tyre clearance: 32 mm Material: Carbon (CFR) Weight: 2.19 lbs BB Standard: BB86/BB92, 86mm, Press Fit Tire Clearance: 32c Color: Sparkle Stealth |
|---|---|

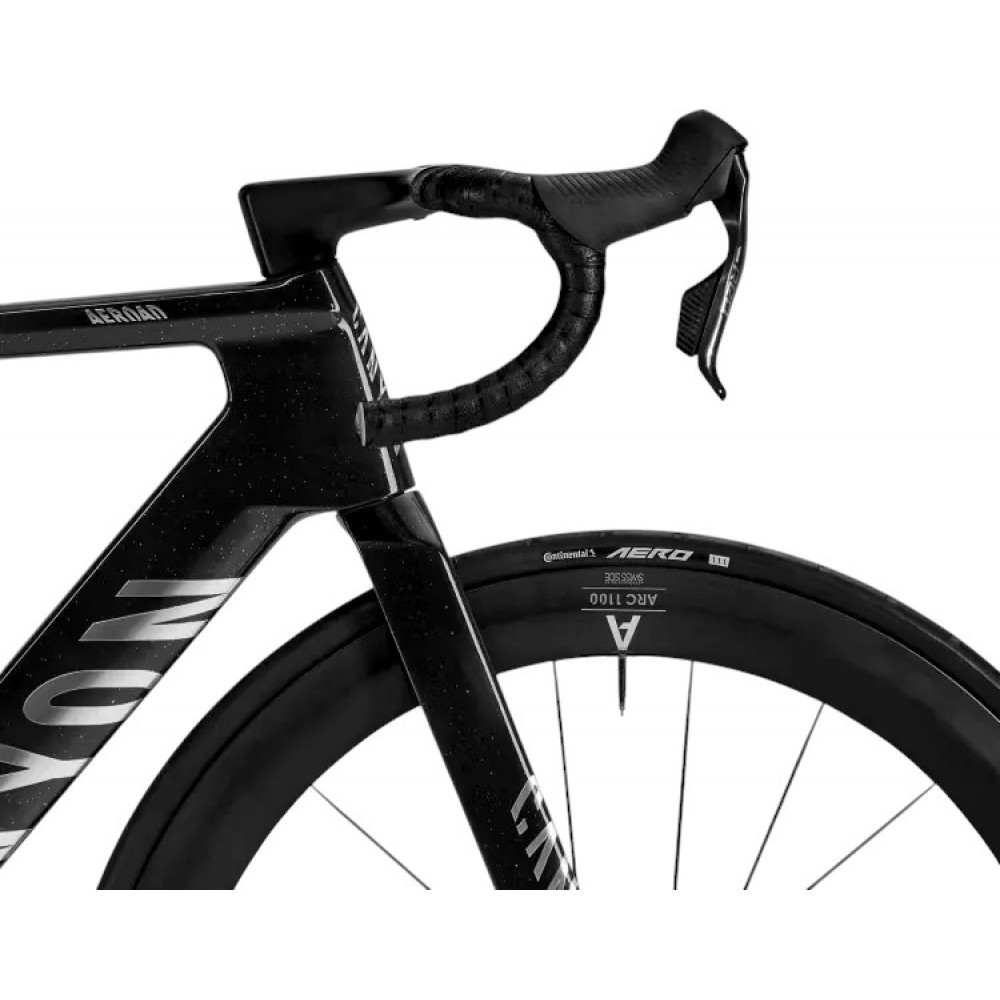

| FORK |
Canyon FK0137 CF Disc, Aero fork shaped using advanced CFD technology. With hermetically sealed headset and titanium bearing seat for next-level durability and smoothness. Axle dimension: 12x100 mm Fork steer tube diameter: 1 1/8" Tyre clearance: 32 mm Material: Carbon (CF) Weight: 0.87 lbs |
| BOTTOM BRACKET |
SRAM DUB Pressfit Bottom bracket standard: PF 86.5 Weight: 0.15 lbs |

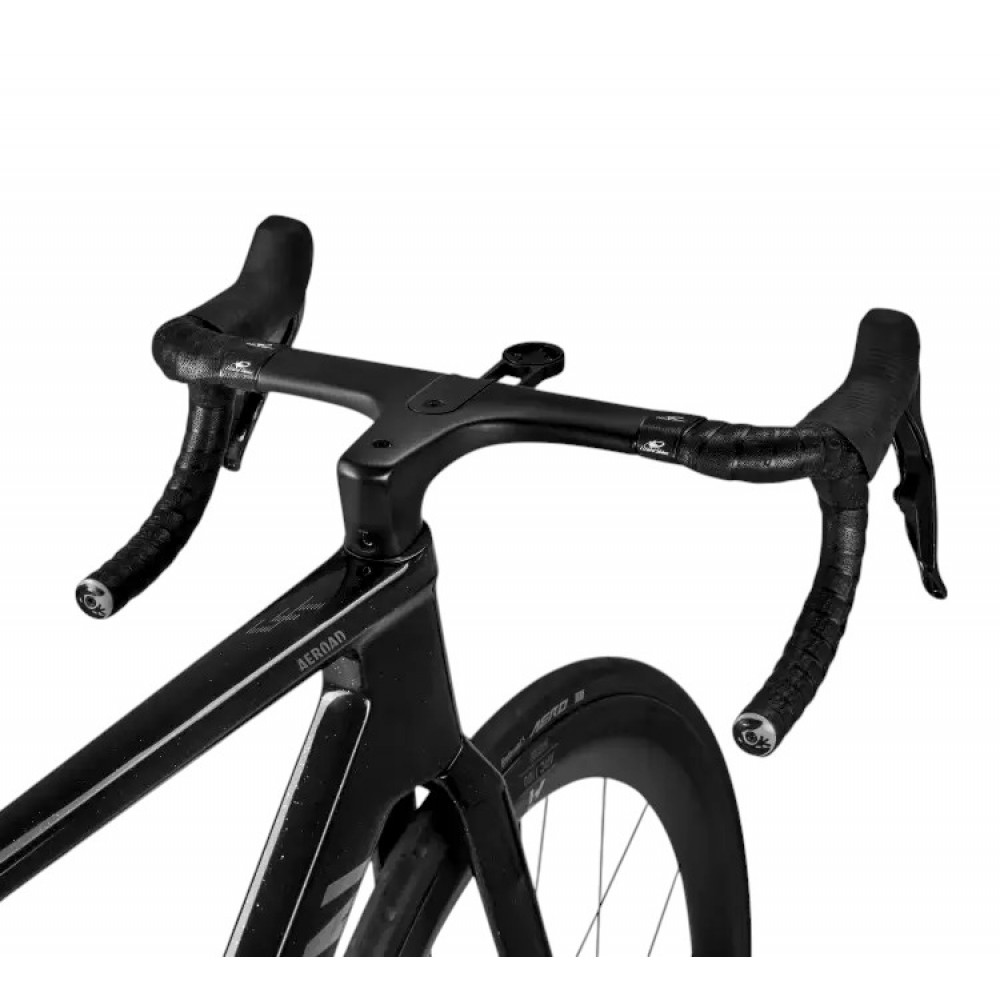

| HANDLEBAR | Classic Drops |
| SADDLE |
Selle Italia SLR Boost Superflow Kit Carbonio Width: 130 mm Gender: Unisex Max. Rider Weight: 100 kg Weight: 0.28 lbs |

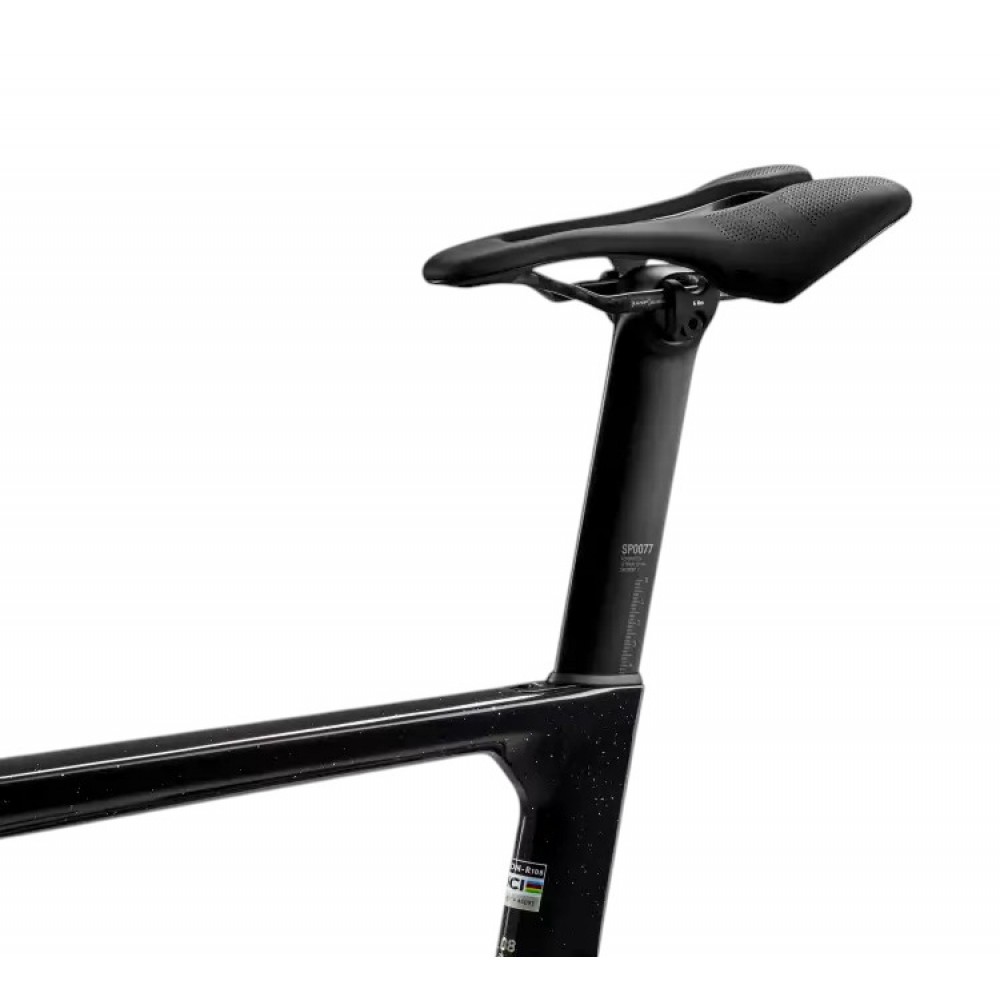

| SEATPOST |
Canyon SP0077, Easy-adjust carbon seatpost with independent setback & tilt adjustment. Setback: -10 mm Material: Carbon (CF) Weight: 0.35 lbs Type: Rigid |
| PEDALS | None included |
| GROUPSET | |
| REAR DERAILLEUR |
SRAM Red AXS Rear Derailleur Weight: 0.58 lbs |
| FRONT DERAILLEUR |
SRAM Red Weight: 0.32 lbs |
| CRANK |
SRAM Red E1 172.5 mm Number of chainrings: 2 |
| SHIFTERS |
SRAM Red, Number of pistons: 2, Weight: 0.80 lbs SRAM RED AXS HRD, Number of pistons: 2, Weight: 0.80 lbs |
| CASSETTE |
SRAM Red Number of sprockets: 12 Range: 10-30 |
| CHAIN | SRAM RED |
| BRAKES |
SRAM Red, Number of pistons: 2, Weight: 0.80 lbs SRAM RED AXS HRD, Number of pistons: 2, Weight: 0.80 lbs Type: SRAM RED Hydraulic Disc |
| BRAKE LEVERS |
SRAM Red, Number of pistons: 2, Weight: 0.80 lbs SRAM RED AXS HRD, Number of pistons: 2, Weight: 0.80 lbs |
| WHEELS | |
| RIMS |
Front: DT Swiss ARC 1100 DICUT db 55 Axle dimension: 12x100 mm Rotor mount: Center Lock Rim height: 55 mm Inner width: 22 mm Rim material: Carbon Weight: 1.53 lbs Rear: DT Swiss ARC 1100 DICUT db 55 Axle dimension: 12x142 mm Rotor mount: Center Lock Rim height: 55 mm Freehub: SRAM XDR Inner width: 22 mm Rim material: Carbon Weight: 1.98 lbs |
| TIRES |
Continental Grand Prix 5000 S TR, Width: 28 mm, Weight: 0.65 lbs Continental Aero 111, Width: 26 mm, Weight: 0.54 lbs |

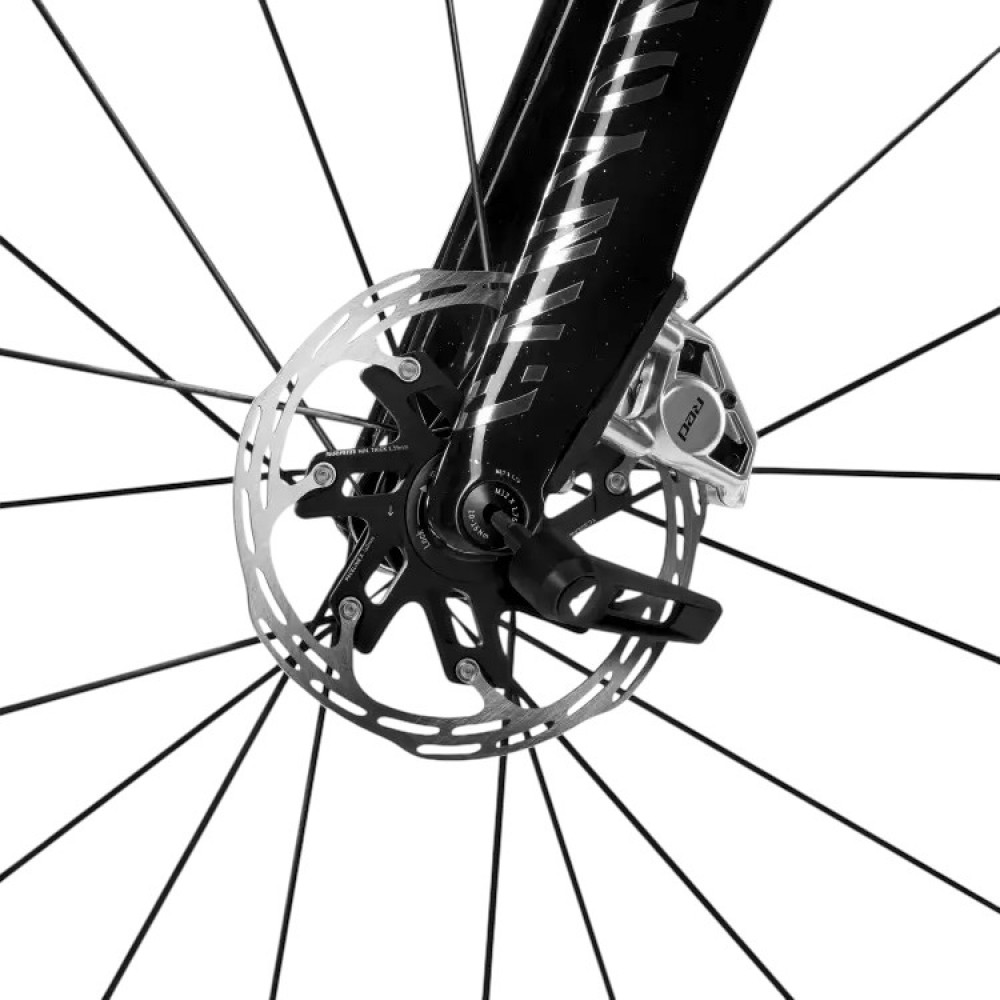

| DISC ROTORS |
SRAM Paceline X, Size: 140 mm, Weight: 0.24 lbs SRAM Paceline X, Size: 160 mm, Weight: 0.30 lbs |
