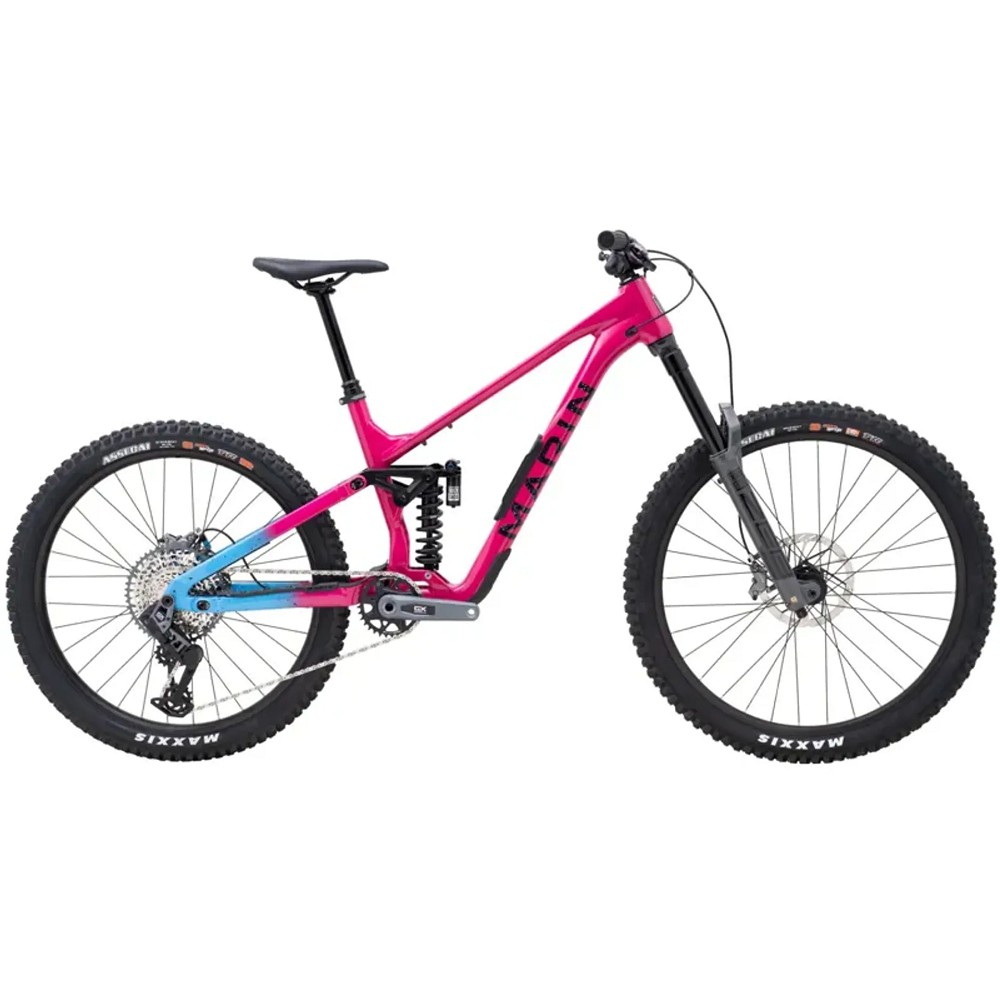

2025 Marin Alpine Trail XR AXS Mountain Bike
- Brand:: Marin
- Product Code: 737521004
- Availability: In Stock
2025 Marin Alpine Trail XR AXS Mountain Bike
The all-new Alpine Trail series is their boldest and most capable line of enduro bikes ever, built upon their most advanced, most adjustable frames to date.
Series 4 aluminium MultiTrac 2 LT frames feature mixed 29”/27.5” wheels, 170mm front and 160mm rear travel, and the utmost in adjustability. Riders can alter the head tube angle and bottom bracket/chainstay length, as well as run 29” rear wheels if desired. “Bear Box” downtube storage includes a zippered nylon bag to house trail essentials, and a 34.9mm seatpost increases strength and is compatible with the latest dropper posts.
"XR" = "Xtra Rad" here at Marin, and we pulled out all the stops with the XR AXS take on the Alpine Trail. Not only did we grace the bike with Ultimate-level RockShox suspension, but took the drivetrain up a notch with SRAM's GX Eagle AXS wireless 12-speed drivetrain. SRAM's Code Bronze brakes provide tenacious stopping power with their 4-piston callipers and 203mm rotors.
SPECIFICATION :
| Frame | All New Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs |
| Fork | RockShox Zeb Ultimate, 170mm Travel, 29", 110x15mm Maxle Stealth, 44mm Offset |
Bottom Bracket |
SRAM DUB MTB 73 |
Headset |
FSA Custom, Adjustable HTA Design |
Stem |
Marin CNC, 35mm Length, 35mm Bar Bore |
Handlebar |
Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back |
Saddle |
Marin Speed Concept |
| Seatpost | TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm |
Pedals |
- |
Grips |
Marin Grizzly Lock-On |
Rear Derailleur |
SRAM GX Eagle AXS T-Type |
Front Derailleur |
- |
Crank |
SRAM GX Eagle, 32T, 55MM CL, 170MM Length |
Shifters |
SRAM AXS POD MMX |
Cassette |
SRAM GX 1275 T-Type 10-52T |
Chain |
SRAM GX Eagle T-Type |
Brakes |
SRAM Code Bronze 4-Piston Hydraulic Disc, HSC 200mm Rotor |
Brake Levers |
SRAM Code Bronze Stealth Hydraulic |
Rims |
Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible |
Spokes |
14g Black Stainless Steel |
Front Hub |
Formula, DC-711, 110x15mm, 6-Bolt Disc, 32h |
Rear Hub |
Formula, DCL-3482, 148x12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H |
Tires |
Maxxis Assegai MAXX GRIP, Front 29x2.5 EXO+, Rear 27.5x2.5" DoubleDown, Tubeless compatible |
