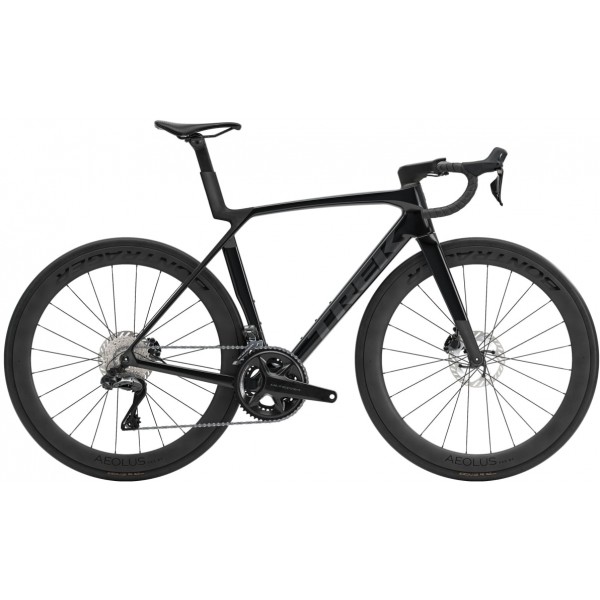

2026 Trek Madone SL 7 Gen 8 Road Bike
- Brand:: Trek
- Product Code: 5338041
- Availability: In Stock
2026 Trek Madone SL 7 Gen 8 Road Bike
The Madone SL 7 Gen 8 is a race-ready road bike built to give you the best of every world. It balances price and performance with a 500 Series OCLV Carbon frame that lets you soar up climbs, while aero geometry cuts drag on descents and IsoFlow keeps you comfortable through the miles. You get a Shimano Ultegra Di2 wireless electronic drivetrain to deliver clean shifts every time, all topped off with carbon wheels, carbon handlebars and a carbon stem for lightweight performance.
SPECIFICATION:
| FRAME |
500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142×12mm thru-axle BB Standard: T47, Threaded Hanger Standard: UDH Tire Clearance: 32c Colors: Gloss Fury Red / Matte Deep Smoke; Gloss Crystal White / Matte Deep Smoke |
|---|---|
| FORK |
Madone Gen 8 full carbon fork, tapered carbon steerer, internal brake routing, flat mount disc, 12×100mm chamfered thru-axle |
| BOTTOM BRACKET | Praxis, T47 threaded, internal bearing |
| STEM |
Bontrager RCS Pro, -7° Length by size: XS: 80mm S, M: 90mm ML, L: 100mm XL: 110mm |
| HANDLEBAR |
Bontrager Aero Pro, OCLV Carbon, 31.8mm, Di2 routing Reach: 80mm | Drop: 124mm Width by size: XS: 35cm control / 38cm drops S: 37cm control / 40cm drops M, ML, L: 39cm control / 42cm drops XL: 41cm control / 44cm drops |
| SADDLE | Bontrager Aeolus Elite, austenite rails, 145mm width |
| SEATPOST |
Madone aero carbon seatpost, 0mm offset, short length Type: Rigid |
| REAR DERAILLEUR | Shimano Ultegra R8150 Di2, max cog 34T |
| FRONT DERAILLEUR | Shimano Ultegra R8150 Di2, braze-on, down swing |
| CRANK |
Shimano Ultegra R8100, 50/34T, HollowTech II Length by size: XS, S: 165mm M, ML: 170mm L, XL: 172.5mm |
| POWER METER | — |
| SHIFTERS | Shimano Ultegra R8170 Di2 |
| CASSETTE | Shimano Ultegra R8101, 12-speed, 11–34T |
| CHAIN | Shimano Ultegra / XT M8100 |
| BRAKES |
Shimano CL800, hydraulic disc, Centerlock, 160mm Type: Shimano Hydraulic Disc |
| RIMS |
Front: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 12×100mm Rear: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 12×142mm |
| TIRES | Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120 TPI, 700×28mm |
| DISC ROTORS | Shimano CL800, Centerlock, 160mm |
